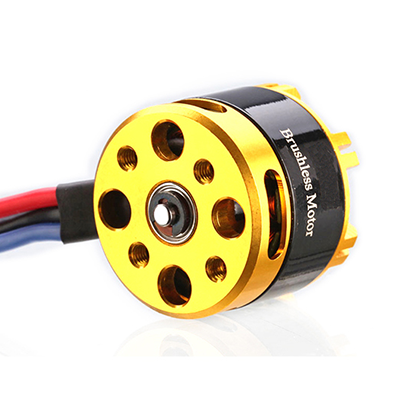

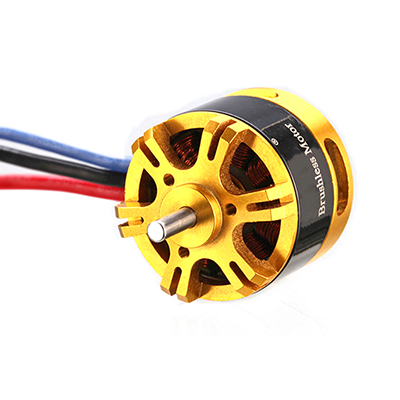

BE2208 2208 1070KV 1400KV 2600KV 無刷直流電機


規格：


產品名稱：BE2208長軸

KV：1070KV

拉力：1025g

電機尺寸：Φ28×26

電池：2-5s lipo

規格：
KV .................................................... ................................................ 1070
配置................................................ .................................... NP
定子直徑................................................ .................................... 22mm
定子長度................................................ .......................................... 8mm
軸直徑................................................ ....................................... 3mm

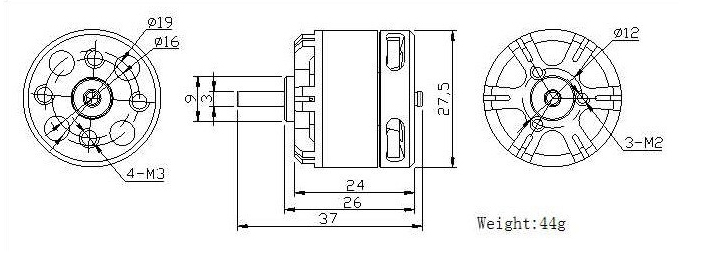

電機尺寸（直徑*長度）.................................... .....Φ28×26毫米
重量.................................... ................................................... ... 44克
電池數量（Lipo）..................................... .......................................... 2-5S
最大持續電流（A）.............................................. ....... 19A
最大連續功率（W）..................................................... ............... 351W


規格：
KV .................................................... ............................................... 1400
配置................................................ .................................... NP
定子直徑................................................ .................................... 22mm
定子長度................................................ .......................................... 8mm
軸直徑................................................ ....................................... 3mm
電機尺寸（直徑*長度）.................................... .....Φ28×26毫米
重量.................................... ................................................... ... 44克
電池數量（Lipo）..................................... .......................................... 2-4S
最大持續電流（A）.............................................. ....... 26A
最大連續功率（W）..................................................... ...... 384瓦


規格：
KV .................................................... ................................. ...... 2600
配置................................................ .................................... NP
定子直徑................................................ .................................... 22mm
定子長度................................................ .......................................... 8mm
軸直徑................................................ ....................................... 3mm
電機尺寸（直徑*長度）.................................... .....Φ28×26毫米
重量.................................... ................................................... ... 44克
電池數量（Lipo）..................................... ................................................... 2-3S
最大持續電流（A）.............................................. ................ 43.1A
最大連續功率（W）..................................................... ...... 478瓦
內部電阻................................................ .................................... 0.044歐姆
